  • CAT6 FTP EZ TYPE SHIELDED RJ45 MODULAR PLUG 8P8C CONNECTOR

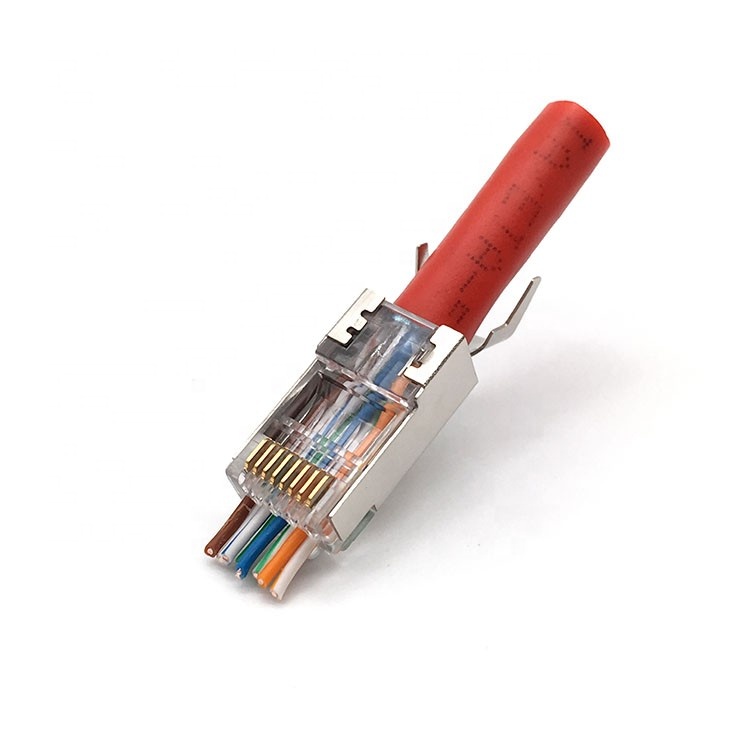

CAT6 FTP EZ TYPE SHIELDED RJ45 MODULAR PLUG 8P8C CONNECTOR

Catalog: Cat6 Connector | 2022-06-09 11:12

Electrical Specifications ANSI/TIA Category  Cat6Contact Resistance Variation20 mOhmContact Resistance100 mOhmSafety Voltage Rating150 VacCurrent Rating1.5 A @ 20 °CDielectric Withs...

Product Details

Electrical Specifications ANSI/TIA Category  Cat6
Contact Resistance Variation20 mOhm
Contact Resistance100 mOhm
Safety Voltage Rating150 Vac
Current Rating1.5 A @ 20 °C
Dielectric Withstand Voltage, RMS, conductive surface1500 Vac @ 60 Hz
Insulation Resistance500 MOhm
Environmental Specifications  Flammability RatingUL 94 V-0/UL 94 V-2
Operating Temperature-10 °C to +60 °C
Plug Insertion Life750 times
Wiring26-22AWG T568A | T568B
